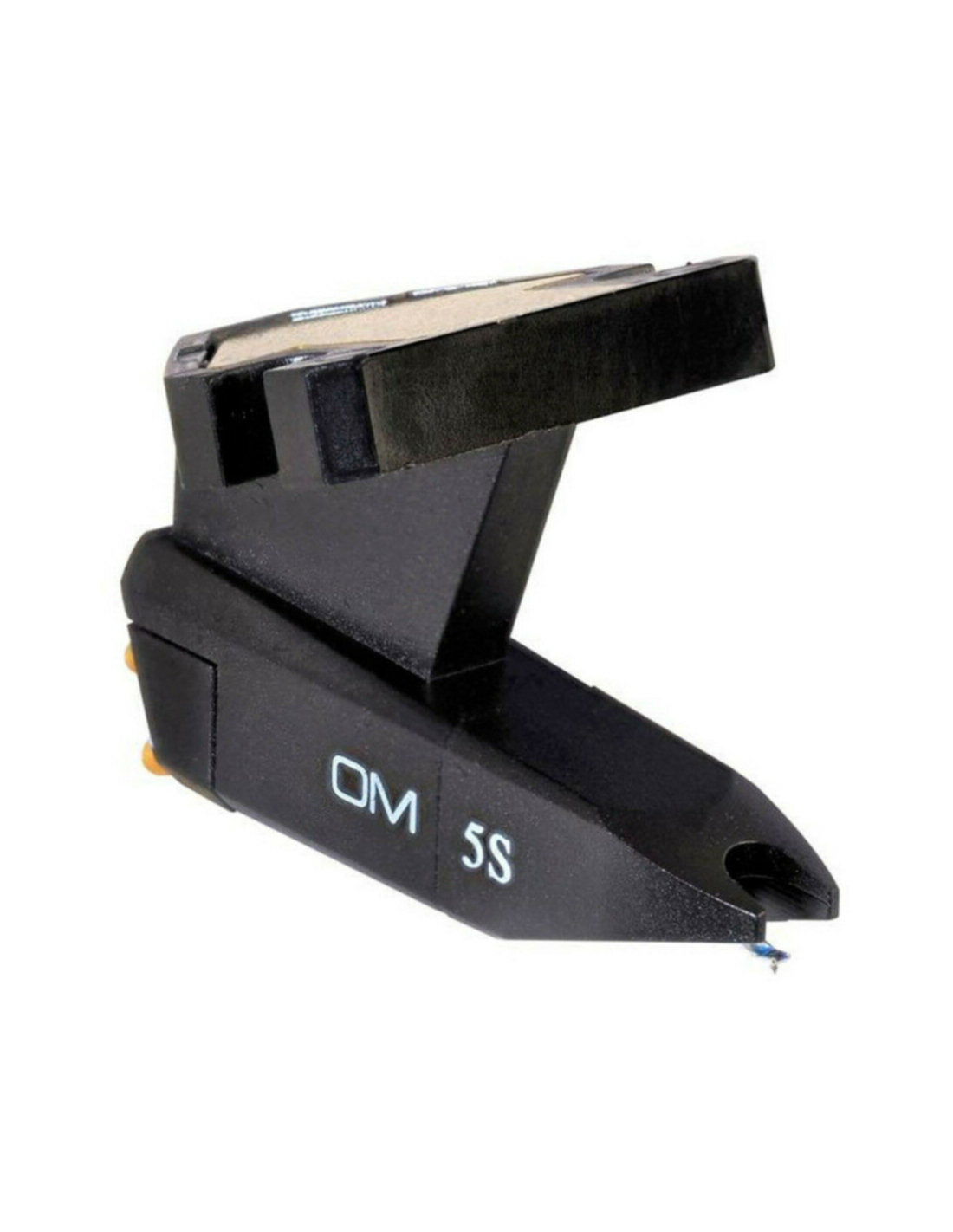

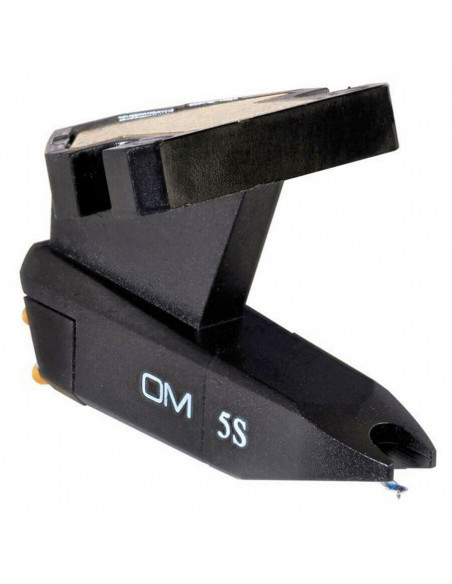

Testina Om 5S

Testina Om 5S

5705796013832
ORDINA ORA
54,99 €

Con questo prodotto ricevi 183 punti,. Totale del carrello è 183 punti, convertibile in un voucher di: 0,92 €.

Tasse incluse
Testina Om 5S

  Puoi fidarti sempre.

⭐⭐⭐⭐⭐ le recensioni indipendenti da tutto il mondo

  Se cambi idea, nessun problema.

30 giorni di tempo per cambiare idea sul tuo ordine.

  Un assistente dedicato.

Un assistente dedicato che segue i tuoi acquisti.


  • Stilo Sferico
  • Il corpo della cartuccia Super OM 5 è fabbricato da un Noryl (composto di plastica e vetro) che assicura elevata rigidità e libertà dalle risonanze.


Technical data

Output voltage at 1000 Hz, 5cm/sec. - 4.5 mV
Channel balance at 1 kHz - 2 dB
Channel separation at 1 kHz - 20 dB
Channel separation at 15 kHz - 12 dB
Frequency range at - 3dB - 20-20.000 Hz
Frequency response - 20-22.000 Hz
Tracking ability at 315Hz at recommended tracking force *) - 60 µm
Compliance, dynamic, lateral - 20 µm/mN
Stylus type - Spherical
Stylus tip radius - R 18 µm
Tracking force range - 1.5-2.0 g (15-20 mN)
Tracking force, recommended - 1.75 g (17.5 mN)
Tracking angle - 20.
*) Typical value
Internal impedance, DC resistance - 750 Ohm
Internal inductance - 450 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-500 pF
Cartridge colour, body/stylus - Black/Black
Cartridge weight incl. extra weight - 5 g
Cartridge weight excl. extra weight - 2.5 g
Replacement stylus unit - Stylus 5S
